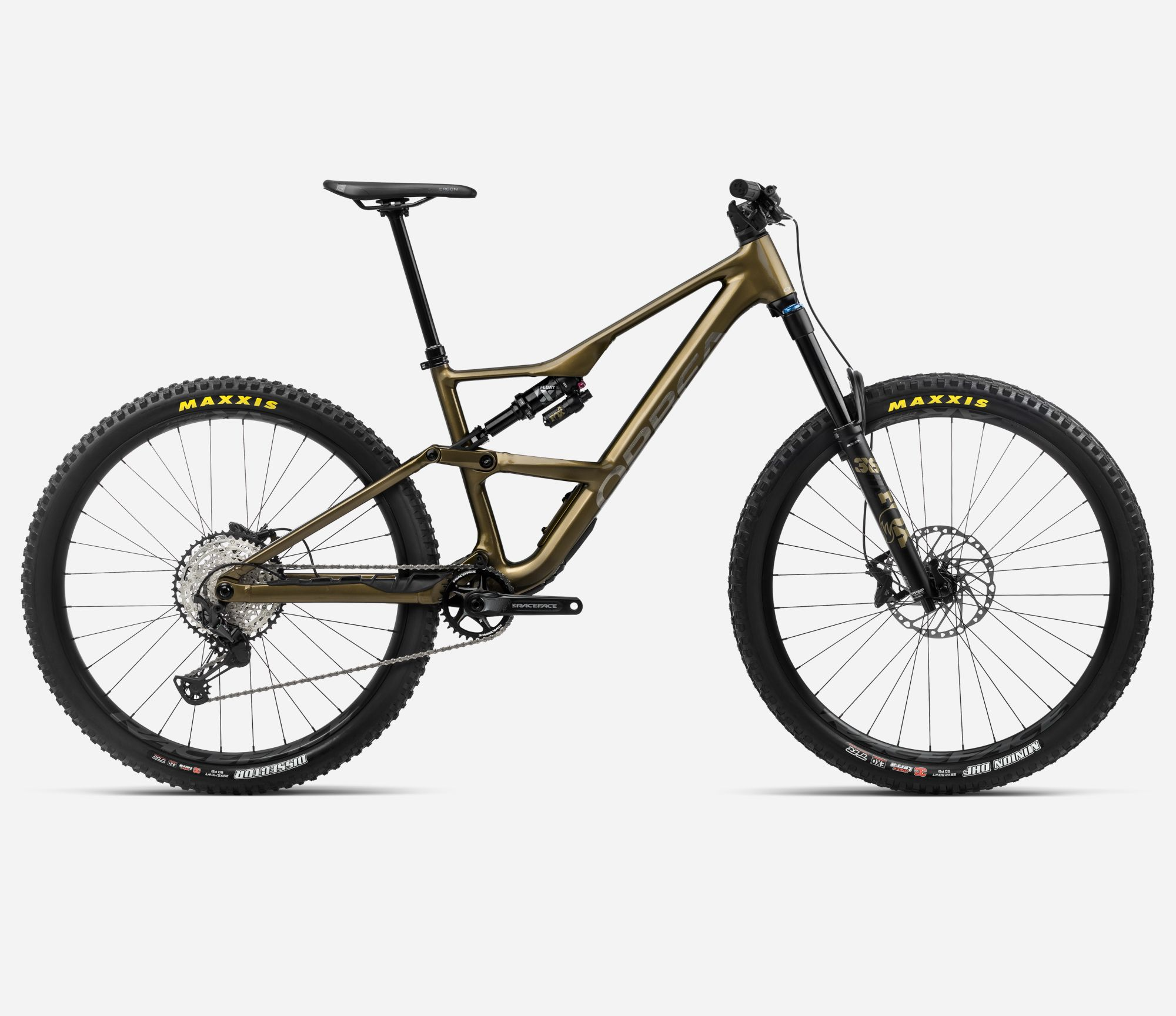

Orbea Occam LT H20
Details
Make the mountain your playground. Your bike should match your vision of the ride, adapting to whatever adventure your trail takes you on. Occam LT is the voice in your head telling you that you can push harder, stay off the brakes, and take it that bit further.
Quick Flip Adjust
In less than 15 second, you can choose between the high and low positions, giving a change of 8mm in the bottom bracket height and 0.5 degrees in the headtube.
Easy Cable Routing
Cables are fully guided from the rear LOCKR and from there it is easy to reach the headtube if you ever have to replace a cable outer.
Second Skin
Occam is ready for a tough life and the replaceable vinyl protection brings options as well as keeping the paintwork looking like new for longer.
| S-High | S-Low | M-High | M-Low | L-High | L-Low | XL-High | XL-Low | |
|---|---|---|---|---|---|---|---|---|
| Seat Tube (C-T) | 405 | 405 | 415 | 415 | 430 | 430 | 460 | 460 |
| Top Tube (EFF) | 571 | 572 | 597 | 598 | 624 | 625 | 651 | 653 |
| Head Tube | 95 | 95 | 100 | 100 | 110 | 110 | 120 | 120 |
| Chainstay | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 |
| BB Height | 350 | 342 | 350 | 342 | 350 | 342 | 350 | 342 |
| BB Drop | 28 | 36 | 28 | 36 | 28 | 36 | 29 | 36 |
| Wheelbase | 1199 | 1200 | 1226 | 1227 | 1255 | 1257 | 1285 | 1286 |
| Head Angle | 64.5 | 64 | 64.5 | 64 | 64.5 | 64 | 64.5 | 64 |
| Reach | 435 | 430 | 460 | 455 | 485 | 480 | 510 | 505 |
| Stack | 616 | 621 | 621 | 625 | 630 | 635 | 639 | 644 |
| Fork Length | 575 | 575 | 575 | 575 | 575 | 575 | 575 | 575 |
| Rake | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Seatpost Insertion Min | 410 | 410 | 420 | 420 | 435 | 435 | 460 | 460 |
| Size | S | M | L | XL |
|---|---|---|---|---|
| Rider Height (CM) | 150 - 165 | 160 - 175 | 170 - 185 | 180 - 198 |
| Rider Height (IN) | 59.1" - 65.0" | 63.0" - 68.9" | 66.9" - 72.8" | 70.9" - 78.0" |
Specs
| Fork | Fox 36 Float Performance 160 Grip 3-Position QR15x110 |
|---|---|
| Frame | Orbea Occam Hydro. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels. Linkage compatible with OC multitool |
| Tires | Maxxis Minion DHF 2.50" FB 60 TPI 3C Maxx Terra Exo TR |
| Brakes | Shimano M6120 Hydraulic Disc |
| Saddle | ERGON SM Enduro |
| Wheels | Race Face AR 30c Tubeless Ready |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Crankset | Race Face Aeffect 32t |
| Seatpost | OC Mountain Control MC21, 31.6mm, Dropper |
| Shifters | Shimano SLX M7100 I-Spec EV |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus |
* Subject to change without notice.
